How Print File Setup Affects Your Finished Results
A print job can look perfect on screen and still fail in production.
White edges where color should run to the edge. Text trimmed too closely. Graphics that scale incorrectly. These issues rarely originate with the printer itself. More often, they start with how the file was built before it was ever sent to production.
The good news is that most file setup problems follow predictable patterns. Once you understand the key zones that make up a print-ready file, safe zone, trim line, bleed, and crop marks, you can eliminate many of the issues that lead to reprints, delays, and unnecessary costs.
This guide explains what each element does, why it matters, and what to check before sending your next file to print.
Why Most Print Errors Are File Setup Problems
A printer does exactly what the file tells it to do. If the file is set up incorrectly, the printer will reproduce those mistakes. That is why file review is just as important as print quality, and why organizations that consistently provide print-ready files experience faster turnaround, fewer corrections, and more predictable results.
Most production issues can be traced back to one simple oversight: focusing on the finished piece without accounting for the production requirements that surround it. Understanding how bleed, trim, safe zones, and crop marks work together is one of the most effective ways to improve print outcomes and avoid costly mistakes.
The Four Zones of a Print-Ready File
Every print-ready file is built around a framework that guides how the piece will be produced, trimmed, and finished. Understanding these four zones helps ensure the final product looks exactly as intended.
Safe zone
The safe zone is the inner boundary where all critical content belongs. Text, logos, phone numbers, legal copy: anything that must survive the trimming process intact should sit at least 0.25 inches inside the trim line. This buffer accounts for minor registration shifts during cutting and ensures that nothing important ends up uncomfortably close to the edge or, worse, removed entirely.
Trim line
The trim line defines the final size of the finished piece. An 8.5 by 11-inch brochure has a trim line at exactly those dimensions. Everything outside the trim line is cut away during production.
Bleed
Bleed is the extension of design elements beyond the trim line, typically 0.125 inches on all sides. It exists because cutting is not a zero-tolerance process. Even with precision equipment, there is a small margin of variability in exactly where the cut lands. When a background color, image, or design element is supposed to run to the edge of the finished piece, the bleed ensures that a slightly off cut does not leave a thin white sliver where the design ends and the paper begins.
The rule is straightforward: if any element in your design touches the edge of the piece, it must extend into the bleed area. If it does not, you could see white edges on the finished print.
Slug
The slug is the outermost area, used for production information that does not appear on the finished piece. Printer instructions, job numbers, color bars for press calibration, and internal notes live in the slug. Most customers will never need to set up a slug themselves, but it is worth understanding when working with commercial print operations or press workflows.
What Are Crop Marks and Why Does Every Print File Need Them?

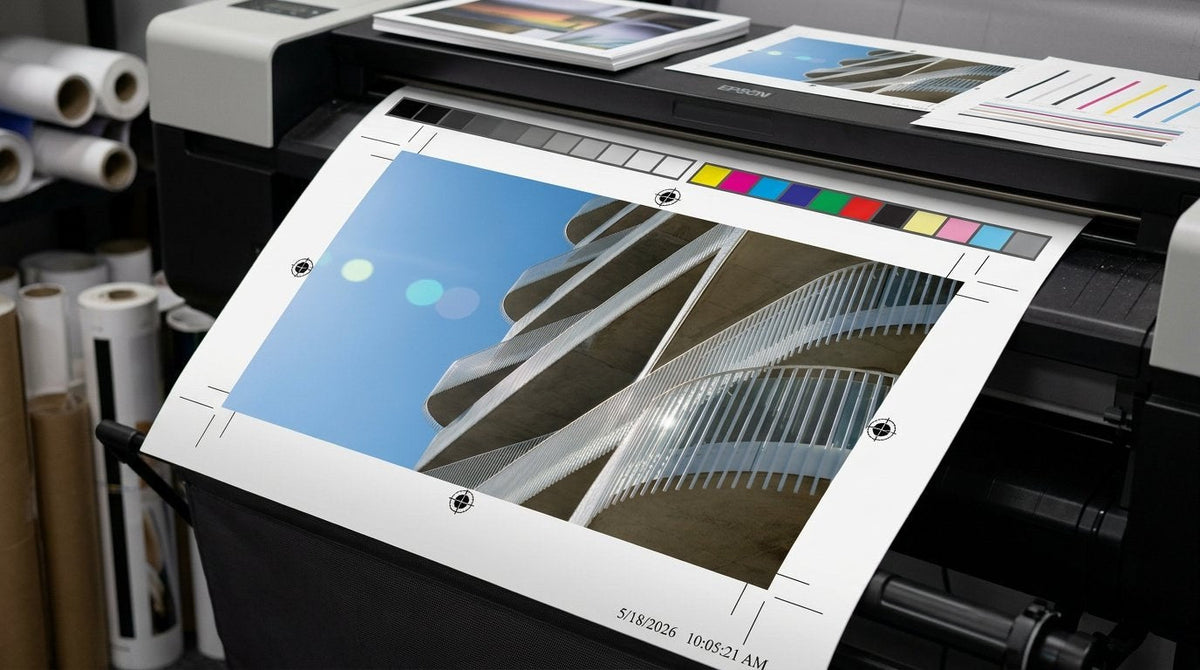

Once the safe zone, trim line, and bleed are properly established, the next step is ensuring production knows exactly where the finished piece should be cut. Crop marks are the small lines printed outside the trim area that tell the cutter exactly where to cut. They appear at the corners of the trim line and serve as the reference point for the entire trimming process.
Without crop marks, the production team must estimate where cuts should land, which introduces variability and risk. With crop marks, every cut is anchored to a precise reference. For jobs with multiple pieces, labels, or anything requiring consistent trimming across a large run, crop marks are not optional. They should be enabled by default on every export.
In most design applications, crop marks are added at export time rather than within the document itself. When exporting a print-ready PDF, look for the marks and bleeds options and enable crop marks along with any bleed settings.
The Most Common File Setup Errors and How to Avoid Them
Most print production issues can be traced back to a handful of recurring file setup mistakes. Fortunately, they are all straightforward to prevent when caught before the file reaches production.
No bleed on full-color designs
When a design uses a full-color background or an image that runs to the edge, and no bleed is set up, the finished piece will have white edges after trimming. The fix is to extend the background or image 0.125 inches beyond the trim line on all affected sides before exporting.
Text placed too close to the edge
Text that sits within 0.25 inches of the trim line is at risk. Even small variations in cutting can leave the text visually crowded against the edge or cut into. Moving critical text inside the safe zone eliminates this risk entirely.
Document size set to the wrong dimensions
One of the most common errors is designing at a size that does not match the final trim size. If the document is set up at the wrong dimensions from the start, the entire file may need to be rebuilt or rescaled. Set the document to the final trim size at the beginning of the project, then add bleed on top of that.
Missing crop marks on export
A file can be set up perfectly and still cause production problems if crop marks are not included in the exported PDF. Check export settings before sending any file to print. If you are not sure whether your export includes crop marks, ask your print provider to review the file before the job runs.
Where Bleed, Trim, and Margin Errors Become Visible
File setup errors affect every category of print production, but some applications make the consequences more visible than others.
Marketing materials
Brochures, flyers, postcards, and sell sheets almost always use full-bleed designs. A missing bleed turns a premium design into something that looks unfinished. These are also the pieces most likely to be compared directly to a competitor's materials, which makes quality consistency especially important.
AEC and construction documents
In AEC documents, precision matters. Plans, presentation boards, and large-format drawings rely on annotations, dimensions, and title blocks to communicate information clearly. When these elements are positioned too close to the trim line, they can be partially cut off during production, affecting both readability and accuracy.
Large-format and wide-format prints
Posters, banners, and wall graphics amplify every error. A missing bleed that produces a two-millimeter white edge on a small brochure goes largely unnoticed. The same error on a 4-by-8-foot banner is immediately visible from across the room. The larger the finished piece, the more noticeable even minor file setup errors become.
A File Setup Checklist That Prevents Costly Mistakes
These are the six things worth confirming before sending any file to print:
- Document size is set to the final trim size
- Bleed of 0.125" is added on all sides where design elements reach the edge
- All critical content sits at least 0.25" inside the trim line
- Crop marks are enabled in export settings
- File is exported as a print-ready PDF
- Resolution is 300 DPI or higher for standard print applications
Running through this list before every submission takes less than two minutes and eliminates the most common causes of reprints and production delays.
How Proper Print File Setup Reduces Reprints, Delays, and Cost
It is easy to think of bleed, crop marks, and safe zones as technical design details. In reality, they are operational details that affect production speed, cost, and consistency. Files that require correction before printing add time to the production cycle. Reprints from files that were not caught before running add cost. Inconsistency across materials from different jobs or different vendors creates brand perception issues that accumulate over time. Organizations that standardize print-ready file preparation get faster turnaround, lower total print costs, and more consistent output across all their materials.
For organizations managing multiple offices, ongoing marketing initiatives, or regular construction document production, these small details add up over time.
Not Sure If Your File Is Set Up Correctly?
Even experienced designers occasionally miss a setting or export option. A quick file review before production is often the difference between a smooth print run and an expensive reprint. If you have questions about your file setup, CorePrint will review the file before printing to confirm it meets production standards.
Send your file to CorePrint before your next job and we will confirm it is production-ready. Reach out at info@coreprintsolutions.com or 713.353.1122.
Get It Right Before It Prints
The best print results start long before ink reaches paper.
A properly prepared file gives the production process everything it needs to deliver clean cuts, accurate sizing, and consistent results. Understanding safe zones, trim lines, bleed, and crop marks helps eliminate common production issues and ensures your finished piece looks the way it was intended.
Whether you are producing marketing materials, construction documents, presentation boards, or large-format graphics, strong file setup habits lead to fewer reprints, faster turnaround times, and better results every time.
